At Apex Industrial Storage, we specialize in delivering tailored storage systems that enhance operational efficiency. This case study highlights how we designed a custom drawer mold rack system for a leading U.S. manufacturing firm, optimizing their workspace while ensuring durability and accessibility.

Project Overview

Our client, a leader in manufacturing, needed a robust solution to store heavy molds securely while maximizing space. After detailed consultations, we developed two distinct mold rack systems to meet their specific requirements for mold sizes and weight capacities. The objective was to create durable, accessible, and space-efficient storage solutions.

Obter um orçamento gratuito

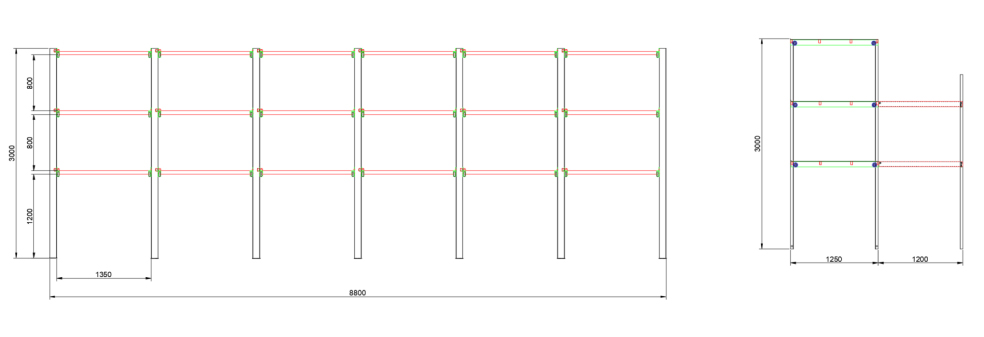

Solution 1: High-Capacity Three-Layer Mold Rack

The first solution was a three-layer drawer mold rack designed for larger molds. Key features include:

  • Dimensões: 8.8m (L) x 2.45m (W) x 3m (H)
  • Drawer Size: 1350mm x 1250mm
  • Load Capacity: 900kg (approx. 1984 lbs) per layer
  • Construção: High-strength channel steel columns, reinforced drawer panels, and heavy-duty bearings for smooth operation.
  • Design: Fully extendable drawers for easy mold access, finished in a durable blue coating.

This rack was engineered to store large molds securely, with ample layer spacing to accommodate varying mold heights. The fully extendable drawers ensured operators could access molds effortlessly, reducing downtime.

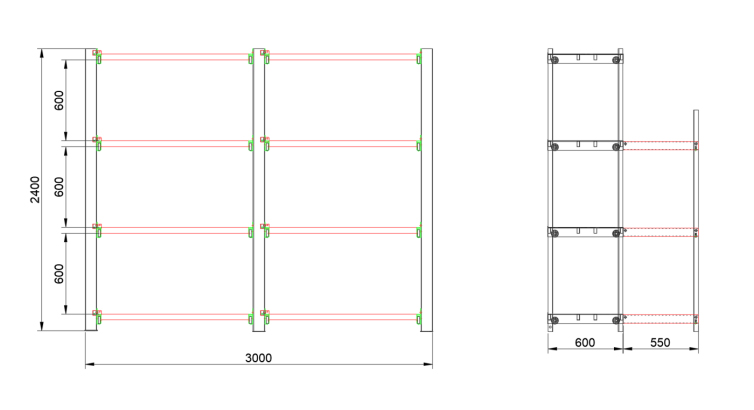

Solution 2: Compact Four-Layer Mold Rack

For smaller molds, we designed a compact four-layer rack with an enhanced load capacity. Key specifications include:

  • Dimensões: 3m (L) x 1.15m (W) x 2.4m (H)
  • Drawer Size: 1350mm x 600mm
  • Load Capacity: 1800kg (approx. 3968 lbs) per layer
  • Construção: Thicker drawer panels and reinforced slide rails for heavier loads.
  • Design: Fully extendable drawers with optimized layer spacing for compact storage.

This solution maximized storage density, allowing the client to store more molds in a smaller footprint without compromising accessibility or safety.

Especificações técnicas

Componente Three-Layer Rack Four-Layer Rack
Colunas 100x40x4.0mm channel steel 100x40x4.0mm channel steel
Drawer Panel 1.5mm textured steel 2.0mm textured steel
Slide Rails 3.8mm dedicated rails 4.8mm dedicated rails
Bearings High-load 6404 bearings High-load 6404 bearings
Acabamento Blue powder coating Blue powder coating

Why This Solution Worked

Our collaborative approach ensured the mold racks met the client’s needs:

  • Personalização: We modified the initial design to include fully extendable drawers, improving accessibility based on client feedback.
  • Durabilidade: High-quality materials ensured reliability under heavy loads.
  • Efficiency: Tailored drawer sizes and layer spacing maximized storage capacity while maintaining ease of use.
  • Segurança: Reinforced components and smooth slide rails minimized risks during mold handling.

The result was a storage system that streamlined operations, reduced clutter, and boosted workflow efficiency.
