Strattec | Injection Mold Storage

Rack Storage Mold Racking System Specification for Strattec

Erack turns crowded mold storage into a cleaner, overhead-crane-ready layout for Strattec. The rack keeps dies visible, reachable, and protected while cutting aisle clutter and manual handling.

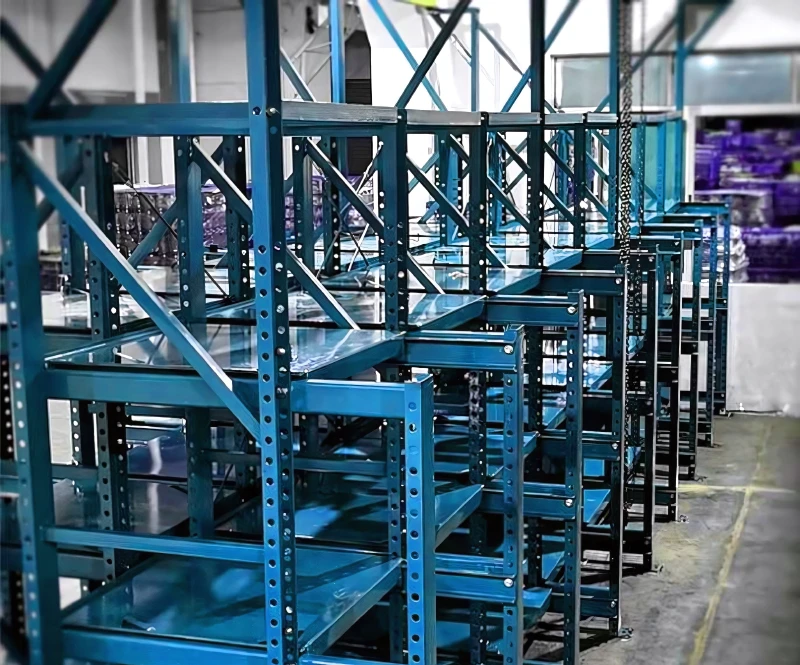

Blue three-post roll-out mold racks with fully extended drawers in an industrial workshop

  • Full-extension drawers keep each mold face open for faster pick and return.
  • Q235B steel frame, bearing rail, and safety locking pin support heavy duty mold storage.
  • Overhead crane access fits an automotive molding storage rack workflow.

Request Rack Layout

Rack Storage Specification

Specification Item Standard Value / Option
Rack type Three-post roll-out mold rack system
Access mode Full-extension drawer bays for direct die retrieval
Structure Q235B steel frame with bearing rail and safety locking pin
Handling method Overhead crane compatible for injection mold storage

Why Strattec Needs This Rack

01

Replace floor stacking

Old mold room layouts waste floor space, hide inventory, and make every move slower. A layered rack system lifts molds off the ground and keeps each bay organized.

02

Reduce handling damage

Full-extension drawers and bearing rails let the operator move the load in a controlled path instead of dragging dies across pallets or open floor space.

03

Fit crane-led workflows

The rack keeps vertical access clear for crane pick-and-place work, which is the right match for automotive molding storage and tool room changeover.

Blue three-post die roll-out rack with overhead crane rail, ball bearing rollers, and safety pin

Photo Proof From the Workshop

The workshop image shows a real mold storage aisle with full-extension drawers and overhead crane access. The detail image shows the rack structure, bearing rollers, and safety pin. Together they prove the system is built for heavy duty mold storage, safe access, and fast retrieval in a Strattec-style injection mold storage area.

Send Your Rack Layout Requirements

Share mold weight, bay width, aisle clearance, and crane path. We will match the rack row count, drawer depth, and handling flow to Strattec’s production storage needs.

Contact Erack Team
