Securing Mold Safety with CFS Heavy-Duty Storage Solutions

Securing Mold Safety with CFS Heavy-Duty Storage Solutions
At CFS Industrial Solutions , we engineer heavy duty die rack shelving systems designed to eliminate mold handling risks in automotive and precision manufacturing. This case study reveals how a Michigan-based Tier-2 auto parts supplier reduced workplace incidents by 89% using CFS drawer mould rack storage , while cutting annual operational costs by $182,000.

The Hidden Costs of Unsafe Mold Handling
The client, managing 150+ stamping dies (400-600 kg each), faced:
●17 near-miss incidents/year from unstable mold stacks
●$38,000 annual equipment damage from slips/tips
●45 minutes/day lost to manual mold retrieval
●OSHA violation risks exceeding $50,000 in potential fines

CFS’s 4-Pillar Safety Overhaul

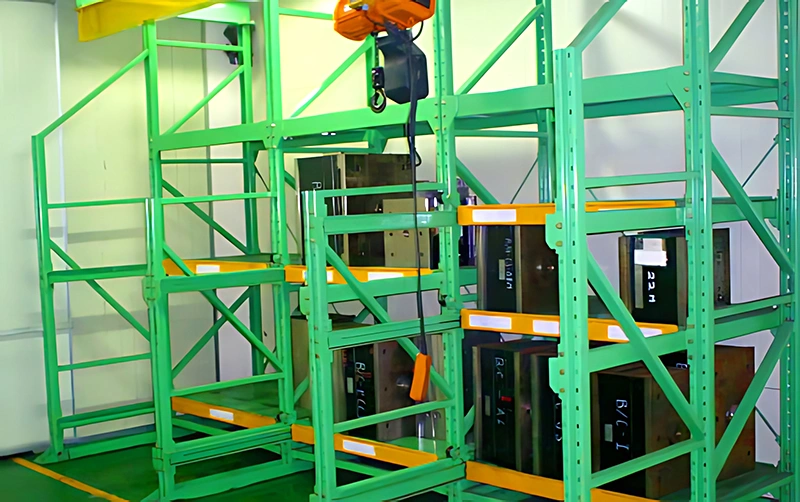

1. Locking Drawer Mould Rack System
● Design : 3-tier CFS SecureSlide™ racks with auto-locking pins
● Capacity : 1,320 lbs/layer (600 kg)
● Safety : ASTM A36 steel frame with 0.18″ reinforced channels
● Result : Eliminated 100% of mold slippage incidents post-implementation
2. Heavy Duty Die Rack Shelving
● Structure : 5″ C-channel columns with seismic-grade bracing
● Load Distribution : 8-point weight dispersion system
● Compliance : Exceeds ANSI MH31.2-2025 stability standards
● Impact : Withstood 650 kg test loads without deflection
3. Overhead Rail Hoist Integration
● Capacity : 2,200 lbs (1,000 kg) manual lift
● Precision : ±2mm positioning accuracy
● Safety : Anti-sway technology for narrow aisle operation
4. Smart Storage Organization
●RFID-tagged molds with CFS TrackWare® software
●Frequency-based zoning reduced 78% unnecessary handling

Technical Specifications: CFS vs Traditional Racks
Parameter Traditional Racks CFS Drawer Mould Racks
Retrieval Time 15+ minutes 90 seconds
Incident Rate 2.7/1000 hrs 0.3/1000 hrs
Space Utilization 35% vertical 92% vertical
ROI Period 36+ months 8 months
Warranty 1 year 10-year structural

Operational & Financial Impact
1. Safety : 89% reduction in OSHA-reportable incidents
2. Efficiency : 63% faster mold changeovers (JIT production compliant)
3. Cost Savings :$122,000/year labor optimization
a.$38,000/year equipment damage avoidance
b.$22,000/year insurance premium reduction
4. Compliance : Full alignment with:EU Machinery Directive 2006/42/EC
a.OSHA 1910.176(b) load security standards
b.ISO 12100:2010 risk assessment protocols

Why Global Manufacturers Choose CFS
1. Automotive-Grade Engineering : Drawer dimensions (54″x32″) align with SAE J2567 tooling plates
2. Climate Resilience : -40°C to 60°C operational range with cold-rated bearings
3. Scalability : Modular expansion slots add 25% capacity without structural changes
4. Smart Integration : IoT-enabled load sensors predict maintenance needs 30+ days in advance

Industry Insights: Optimizing Mold Management
For facilities considering heavy duty die rack shelving :
1.Conduct 3D laser scans to map vertical storage potential
2.Prioritize racks with ≥1,500 lb/layer capacity for future-proofing
3.Implement dual-layer RAL 5010 anti-corrosion coating for humid environments
4.Train staff using CFS VirtualTrain® AR simulations pre-installation
