In the fast-paced worlds of industrial manufacturing and logistics, proper sheet material management is crucial. An effective storage system not only optimizes your floor space but also guarantees the safety and integrity of your valuable materials. This article provides an in-depth analysis of the design features and applications of a high-performance sheet material storage rack, based on detailed engineering drawings.

Comprehensive Design Overview

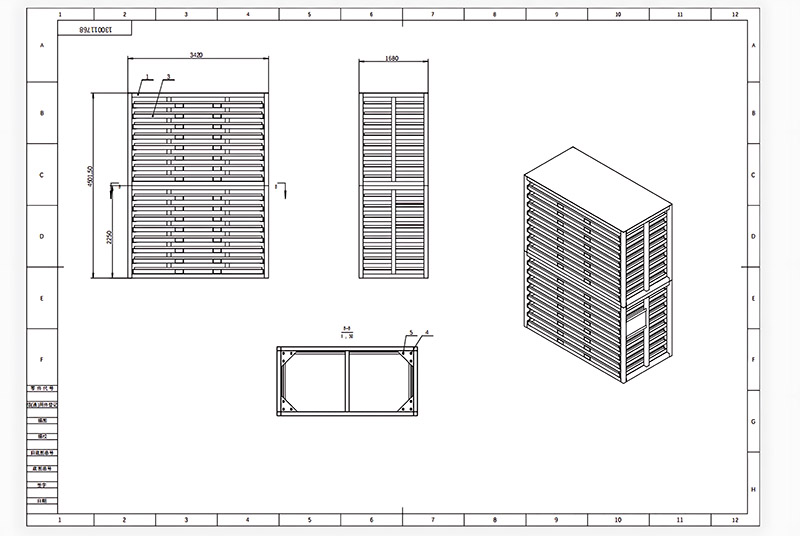

As the detailed blueprints reveal, this sheet material storage rack is meticulously engineered for stability and ease of use. The front, side, top, and 3D isometric views provide a complete picture of its construction and dimensions.

Key Dimensions and Space Optimization

With a length of 11.22 ft (3420mm), a height of 15.72 ft (4791.4mm), and a width of 5.51 ft (1680mm), the rack is designed to fit within standard warehouse parameters while maximizing vertical storage space.

Robust Structural Engineering

The design features a sturdy multi-level framework to ensure maximum stability. Each level of this efficient sheet storage rack consists of multiple horizontal support bars and vertical columns. The spacing is precisely calculated to effectively bear the weight of heavy sheet materials without deflection.

Material Specifications and Finishing

This roll-out sheet metal storage rack is built with strict adherence to high-quality material and surface treatment standards.

High-Grade Materials

All materials used in construction meet rigorous international standards (equivalent to ASTM A36 grade steel), ensuring structural durability and long-term reliability.

Protective Surface Treatment

The upper and lower frames are finished with distinct, high-quality industrial paint. The upper frame is coated in Gentian Blue (RAL 5010) and the lower frame in Traffic Red (RAL 3020). This dual-color scheme not only enhances the rack’s appearance but also provides superior corrosion resistance.

Load Capacity and Operational Guidelines

The engineering specifications clearly outline the rack’s impressive load-bearing capabilities and best practices for safe operation.

Superior Load-Bearing Capacity

Each individual drawer or layer is rated for a maximum load of 3,300 lbs (1500kg), with an incredible total system capacity of up to 33,000 lbs (15000kg). This makes it perfectly suited for storing large volumes of heavy sheet goods.

Usage Recommendations

For optimal stability and safety, it is recommended to load and unload materials from the top levels first. Regular inspection and maintenance of all structural components are crucial to guarantee long-term safe and effective use of the storage system.

Ideal Application Scenarios

This roll-out sheet metal storage rack is an ideal solution for large-scale manufacturing facilities, fabrication shops, and logistics centers that need to centralize the storage of sheet materials. Its robust construction and high load capacity allow it to thrive in demanding industrial environments, providing a truly efficient sheet storage rack system for better material management.

In conclusion, every aspect of this rack, from its dimensions and material selection to its structural strength, is designed with the practical needs of modern industry in mind. Implementing a well-organized storage solution like this not only boosts operational efficiency but also significantly reduces material damage and lowers management costs. For any business handling large quantities of sheet metal, this system represents an invaluable investment in safety and productivity.
