Crank Out Cantilever Rack
Cantilever Crank for Safe Heavy Pipe and Tube Storage
For steel service centers, fabrication workshops, and high-density warehouse storage handling heavy pipes, tubes, and long profiles, the old setup is usually fixed bays or floor bundles. That creates blocked aisles, slower overhead crane access, and more contact damage during retrieval. Terack fits this scene because the crank out cantilever rack brings one storage level outward before lifting, keeps long stock visible by layer, and turns crowded long-material storage into a more efficient storage system.
- Built for overhead crane accessible racking where safe storage of heavy pipes and tubes matters every shift.
- Manual crank out movement reduces deep reaching, extra rehandling, and operator cross-traffic around static rows.
- Single sided and double sided roll out racks support space saving roll out racks layouts for dense tube and profile storage.
Structure and parameter snapshot
| Specification Item | Standard Value / Option |
|---|---|
| Product type | Crank Out Cantilever Rack, Roll Out Cantilever Rack, Telescopic Cantilever Rack |
| Storage target | Heavy pipes, tubes, long steel profiles, and bundled long materials |
| Working scene | Overhead crane accessible racking, workshop supply points, and high-density warehouse storage |
| Visible structure proof | Slotted uprights, roller-supported arms, hand crank drive, and welded steel support frame |
Why Terack fits this long-material problem
Customer and scene

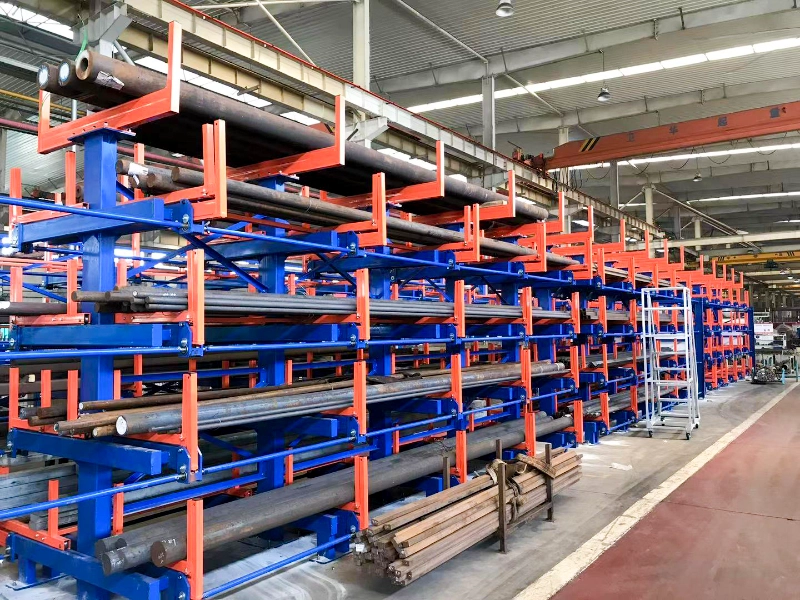

This warehouse scene shows double sided roll out cantilever racks storing long steel tubes with a hand crank drive and open center access. It matches buyers who need dense storage but still want a clear lifting path for overhead crane work.
Old solution problem
The close-up shows the roller-supported arm path that fixed racks do not provide. Without pull-out access, crews reach deeper into the bay, shift adjacent bundles, and increase the risk of scratches or unstable picks on heavy pipes and tubes.
Product fit reason
The single sided retractable cantilever rack image shows why Terack fits high-turnover workshops. One level moves outward toward the operator, so crane or forklift handling starts from a clearer position instead of a blind deep bay.
Final result: safer picks, less damage, and tighter storage
The proof image shows long steel profiles handled from organized rack levels with overhead crane access instead of floor stacking. In practice, that means crank out cantilever safely, faster retrieval, less bundle interference, and a more efficient storage system for heavy long-material rows.
Need a Terack cantilever crank layout for tubes or profiles?
Send your material length range, bundle weight, aisle width, and handling method. CFS can match the Terack crank out storage solution to your warehouse scene and required result.
