When it comes to managing long, heavy materials, you need a storage system that’s as strong as it is smart. This case study highlights high-capacity telescopic cantilever racking designed for a client with demanding needs. Built from premium carbon steel, this system combines exceptional load-bearing strength with flexibility and ease of use. We specialize in custom roll out storage solutions perfect for industries like manufacturing, construction, or logistics. Let’s explore how this bespoke design delivers real value.

What Drives This Racking System?

This steel structure is engineered for heavy-duty performance. It features upright columns, telescopic arms, a fixed base layer, and a transmission frame, all crafted from high-quality Q235 carbon steel. With a modular setup, it includes four adjustable layers and one fixed layer, offering substantial storage capacity. Finished with an electrostatic powder coating in blue or red, it’s durable, sleek, and customizable to suit specific requirements.

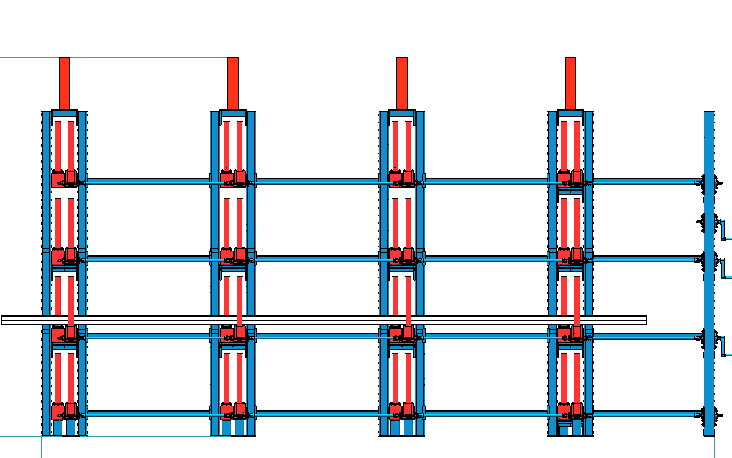

roll out storage solutions

Standout Features That Matter

  • Made for Long Materials: Ideal for storing beams, pipes, or panels, the cantilever arms provide unobstructed access, making it a top choice for oversized items.
  • Telescopic Versatility: Independent arms extend and retract smoothly, integrating seamlessly with cranes or hoists for fast, efficient material handling—a must for high-volume operations.
  • Fully Customizable: From dimensions to finishes, this system can be tailored to fit your warehouse layout and operational needs, ensuring a perfect match.

How It Works: Power Meets Precision

The plug-and-pull telescopic arms are the key to this system’s success. Supported by wheels, the arms on each level are connected via a round tube and linked to a transmission frame. To extend or retract an arm, simply turn the crank handle—a manual process that’s reliable and straightforward. With an 8,800 lbs fixed layer capacity and 880 lbs per telescopic layer (single-sided), plus a 2,200 lbs capacity per arm, this system is built to handle serious loads.

Its four adjustable layers and four arms per layer provide a high-capacity solution that’s both practical and efficient.

Technical Specs Overview

  • Dimensions (Fully Retracted): L 20.5 ft x W 7.4 ft x H 11.6 ft (reference)
  • Dimensions (Fully Extended): L 20.5 ft x W (7.4 + 5.25) ft x H 11.6 ft (reference)
  • Storage Space per Arm: W 31.5 in x H 17.7 in
  • Layer Configuration: 4 adjustable layers + 1 fixed layer
  • Load Capacity (Fixed Layer): 8,800 lbs
  • Load Capacity (Telescopic Layer, Single-Sided): 880 lbs
  • Load Capacity per Arm: 2,200 lbs
  • Материал: Q235 carbon steel
  • Finish: Electrostatic powder coating (blue/red, customizable)

These specs showcase a system designed for strength and scalability, ideal for heavy-duty storage demands.

Why This Solution Excels

This telescopic cantilever racking system was built to tackle real-world challenges. Here’s how our roll out storage solutions benefit businesses:

  • Maximized Capacity: The fixed layer’s 8,800 lbs capacity and robust arms handle heavy loads, while adjustable layers add flexibility.
  • Smooth Operations: Crank-operated arms pair with lifting equipment to speed up workflows without complexity.
  • Lasting Durability: Q235 carbon steel and a protective coating ensure it withstands tough industrial environments.
  • Adaptable Design: With four arms per layer and customizable options, it scales to meet evolving needs.

Packaging and Shipping Simplified

For transport, the system is disassembled into components, wrapped in protective film, and secured on pre-fabricated pallets. This ensures safe delivery and easy assembly, making it a practical choice for businesses anywhere.

A Case Study in High-Capacity Storage

This project demonstrates how innovative design can transform storage efficiency. With its impressive load capacity, user-friendly telescopic arms, and adaptable structure, this racking system offers a reliable solution for managing long, heavy materials. Its manual operation keeps maintenance low, while its customization options make it a future-ready investment.
