Our sheet metal storage solutions feature a robust drawer-style structure, typically with 4 to 8 layers. Each layer is engineered to support up to 3 tons and can be manually extended for easy access. This advanced shelf storage method saves significant space compared to traditional ground stacking, which helps in minimizing material loss and waste. For businesses utilizing laser cutting machines, our racks integrate seamlessly with crane and suction cup systems, streamlining the entire cutting process. The organized design of our Rack de apilde placas de acero ensures that workers can quickly and safely access materials, saving valuable time and reducing labor costs. By storing each type of plate separately, inventory management becomes fast and accurate, allowing for real-time stock monitoring and timely replenishment of materials.
Client Solution: Custom Storage Rack
Client Demand Analysis

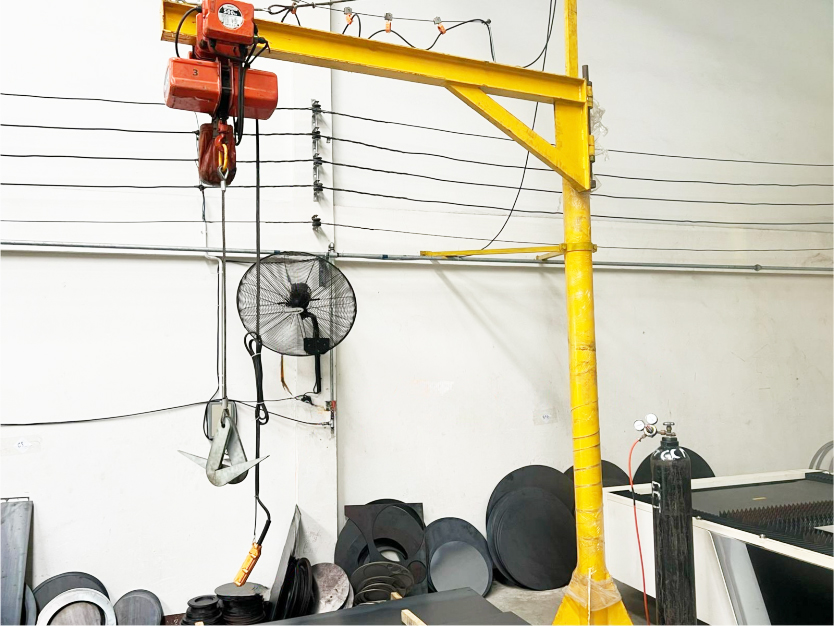

A client in the manufacturing sector approached us with specific storage needs. They required a solution to store 8′ x 4′ (2440mm x 1220mm) plates, utilizing their existing cantilever crane and suction cup system for handling. Key requirements included a manually operated, six-layer drawer system, with each drawer supporting a load capacity of 2,650 lbs (1200 kg).
Technical Specifications and Design
Front and Back View

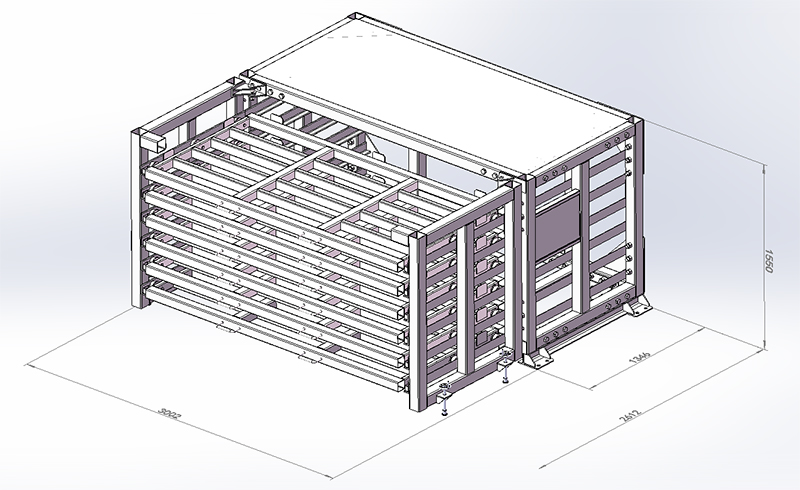

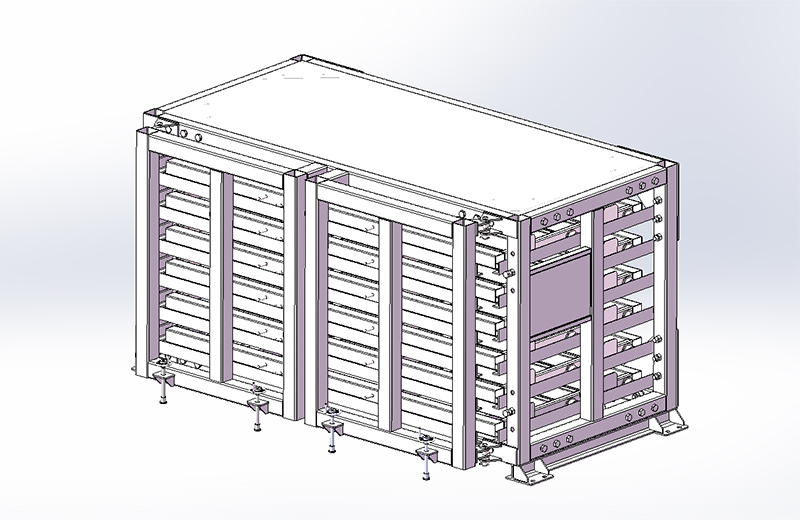

Front Stereo View

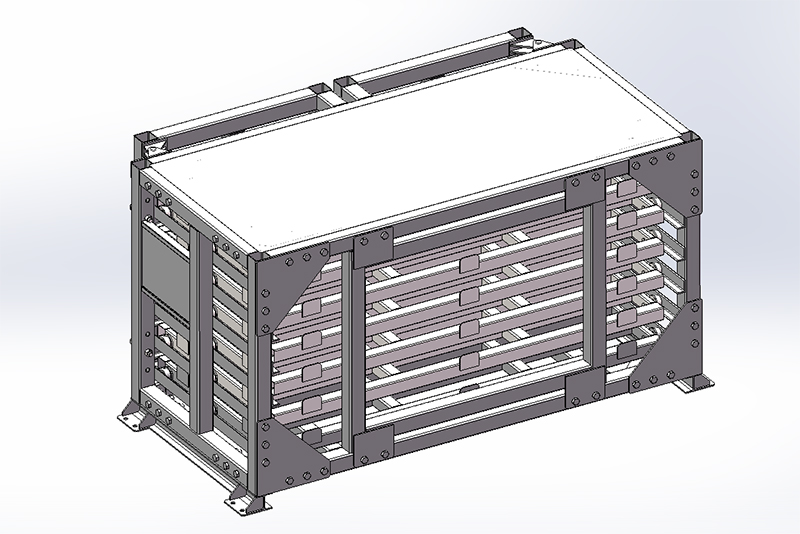

Back Stereo View

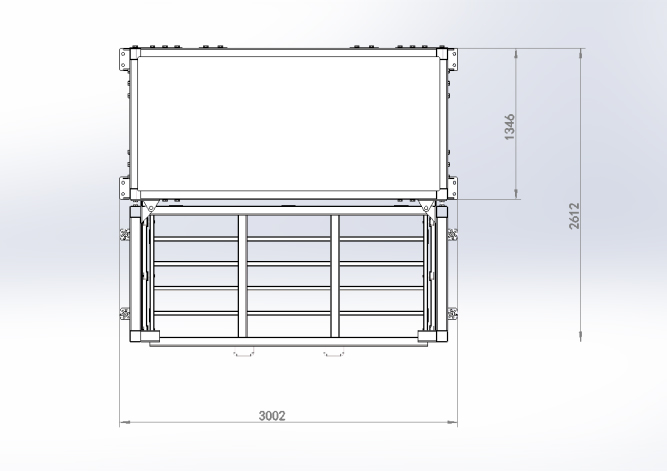

Shelf Dimensions
The overall height of the unit is 61 inches (1550mm), with a total width of 103 inches (2612mm) when the drawers are fully extended.

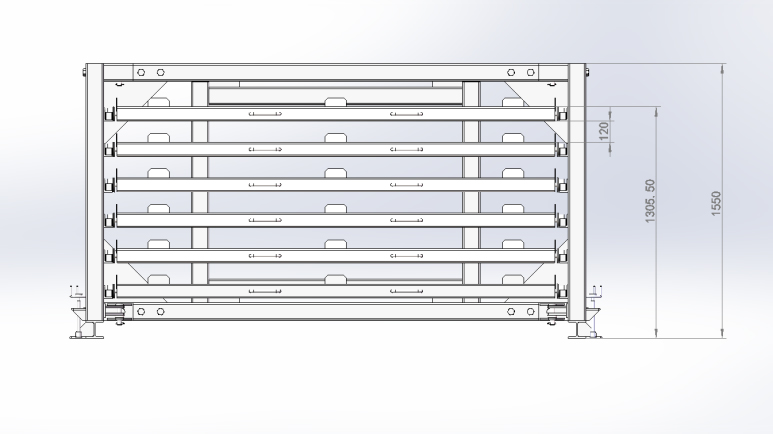

Drawer Specifications
The top of the highest drawer is 51 inches (1305mm) from the floor, with a clearance of 4.7 inches (120mm) between each drawer.

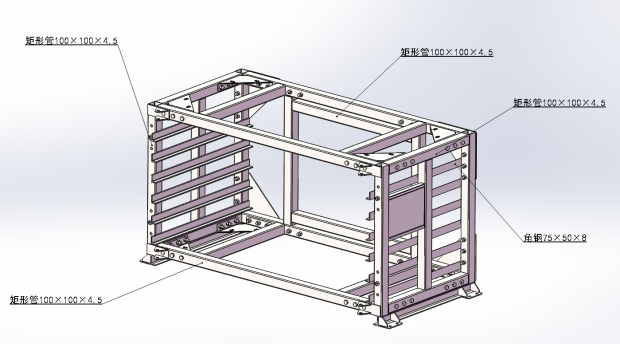

Frame and Drawer Material
Constructed from high-grade steel for maximum durability and safety. The total weight of this complete Rack de apilde placas de acero is 3,858 lbs (1750kg).
