When space is tight but storage demands are high, innovative designs make all the difference. This case study showcases how our estanterías desplegables duraderas were tailored for a client needing an efficient way to store long materials. Built from industrial-grade carbon steel, this solution offers strength, flexibility, and ease of use—perfect for small warehouses or industries like manufacturing, construction, or logistics. Let’s explore how this custom system delivers real value.

What’s Behind This Racking System?

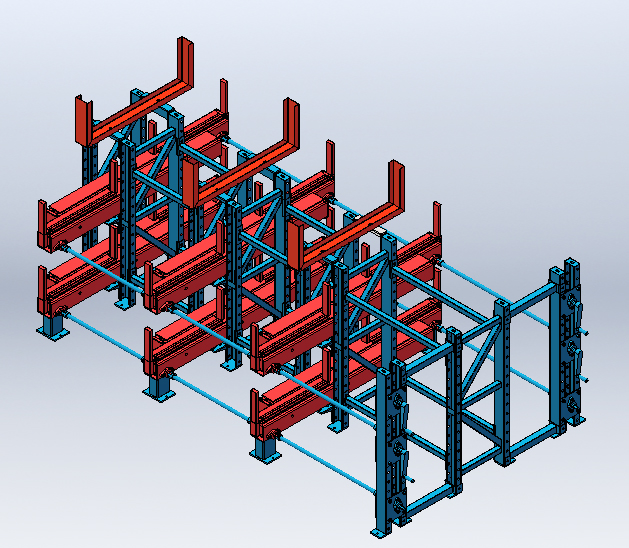

This steel structure is designed for practicality. It features upright columns, telescopic arms, a fixed base layer, and a transmission frame, all crafted from premium Q235 carbon steel. With a modular, adjustable setup, it includes two movable layers and one fixed layer, ideal for maximizing vertical space in a compact footprint. Finished with a sleek blue electrostatic powder coating, it’s both rugged and customizable to suit specific needs.

Key Features That Shine

  • Built for Long Materials: Perfect for storing pipes, beams, or panels, this system’s cantilever arms provide clear access, eliminating the limitations of traditional shelving.
  • Telescopic Efficiency: Independent arms extend and retract smoothly, working seamlessly with cranes or hoists to simplify material handling—a time-saver in any operation.
  • Customizable Design: From dimensions to finishes, this system can be tailored to fit your space and preferences, offering a personalized storage solution.

How It Works: Simple and Strong

The plug-and-pull telescopic arms are the star of the show. Supported by wheels, the arms on each level are connected via a round tube and linked to a transmission frame. To extend or retract an arm, just turn the crank handle on the frame—a manual process that’s intuitive and reliable. With a single-layer capacity of 2,000 kg (approx. 4,400 lbs), this compact system punches above its weight.

The two adjustable layers and one fixed base layer provide ample storage without overwhelming smaller spaces, making it a smart choice for efficiency-driven facilities.

Technical Specs at a Glance

  • Dimensions (Fully Retracted): L 3,475 mm x W 1,760 mm x H 1,584 mm
  • Dimensions (Fully Extended): L 3,475 mm x W (1,760 + 1,200) mm x H 1,584 mm
  • Storage Space per Arm: W 600 mm x H 220 mm
  • Layer Configuration: 2 adjustable layers + 1 fixed layer
  • Total Weight: Approximately 1,050 kg (approx. 2,315 lbs)
  • Load Capacity per Layer: 2,000 kg (approx. 4,400 lbs)
  • Material: Q235 carbon steel
  • Finish: Electrostatic powder coating (blue, customizable)

These specs highlight a system that’s compact yet powerful, ideal for space-conscious operations.

Why This Solution Stands Out

This telescopic cantilever racking system was designed with real-world needs in mind. Here’s how it benefits businesses:

  • Space Efficiency: When retracted, it takes up minimal floor space; when extended, it offers full access—perfect for smaller warehouses.
  • Smooth Operations: The crank-operated arms integrate with lifting equipment, speeding up workflows without complexity.
  • Durability You Can Trust: Q235 carbon steel and a protective coating ensure it holds up in tough environments.
  • Scalable Simplicity: With customizable options, it adapts to evolving storage demands without overcomplicating your setup.

Packaging and Shipping Made Easy

For transport, the system is disassembled into components, wrapped in protective film, and secured on pre-fabricated pallets. This approach ensures safe delivery and quick assembly, supporting businesses with streamlined logistics.

A Case Study in Compact Storage

This project proves that big storage capacity doesn’t require a big footprint. By combining a space-saving design with robust load-bearing strength and user-friendly operation, this roll-out cantilever rack-automated system offers a practical solution for managing long materials. Its manual crank system keeps maintenance low, while its flexibility makes it a versatile choice.

Optimize Your Space Today

Struggling to store long items in a limited area? This case study shows how a compact set of durable roll out racks can transform your warehouse. Strong, efficient, and adaptable, it’s a design worth considering. Contact a storage solutions provider to explore how a similar system could work for you.
